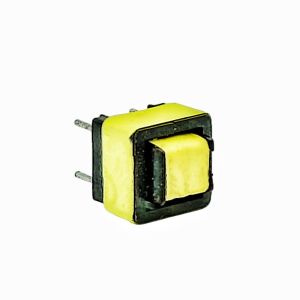

EE8.3 Common Mode Filter Inductor Horizontal Coated With Customized
Coil Feature
1.Product Description
The EE8.3 Common Mode Filter Inductor is a compact yet powerful
electronic component that excels in electromagnetic interference
(EMI) protection. It uses an EE8.3 size core with an optimized
magnetic circuit design to accurately identify and efficiently
suppress common mode noise in circuits. These inductors are used in
a wide range of electronic products and play a key role in
stabilizing the current output in switching power supplies and
ensuring the pure transmission of signals in data communication
lines. Its compact design makes it easy to install in limited board
space, providing a reliable common mode noise solution for many
electronic devices pursuing miniaturization and high performance,
such as smartphones, tablet PCs, and industrial control modules,
effectively enhancing the electromagnetic compatibility and
operational stability of the devices.
| Item | value |
| Model Number | EE8.3 |
| Type | Coupled Inductor |
| Place of Origin | China |
| Guangdong |
| Brand Name | ZXY |
| Certification | RoHS,ISO9001-2001 |
| Series | EE |
| Features | high reliability, small size |
| Frequency | 10KHZ-100KHZ |
| Coil Number | As requirement |
| Feature | Description |
| Compact Size | With the EE8.3 specification, it has a relatively small footprint,
making it suitable for applications where space is limited, such as
in compact electronic devices and densely populated circuit boards. |
| High Common Mode Attenuation | Effectively suppresses common mode noise signals in electronic
circuits. It can significantly reduce unwanted interference,
ensuring the stability and reliability of the circuit operation. |
| Good Frequency Response | Demonstrates excellent performance across a wide frequency range.
It can handle both low and high-frequency common mode signals,
providing comprehensive noise filtering capabilities. |
| Low DC Resistance | Minimizes power loss due to its low direct current resistance. This
helps to improve the overall efficiency of the circuit and reduces
heat generation during operation. |
| High Saturation Current | Capable of handling relatively high current levels without
saturating easily. This feature makes it suitable for applications
that require large current transmission while maintaining effective
common mode filtering. |
| Easy to Integrate | Its standard EE8.3 package allows for straightforward integration
into various circuit designs. It can be easily installed on printed
circuit boards, reducing the complexity of the manufacturing
process. |
| Magnetic Shielding | Provides a certain degree of magnetic shielding, which helps to
prevent magnetic interference between components and enhances the
electromagnetic compatibility of the entire system. |
2.Advantage
EE8.3 common mode filter inductors have the following advantages:
1. Small and compact size: The EE8.3 specification determines its
relatively small size, making it easy to install in situations
where circuit board space is limited. It is suitable for various
electronic devices with strict space requirements, such as
smartphones, tablets, and other portable electronic products,
effectively saving space and facilitating product miniaturization
design.
2. Strong ability to suppress common mode noise: It can efficiently
suppress common mode noise signals in electronic circuits. In
scenarios such as power circuits and communication lines, it can
significantly reduce external interference and common mode
interference generated by the circuit itself, ensuring the purity
and stability of signal transmission, and improving the performance
and reliability of equipment.
3. Wide frequency response characteristics: It can exhibit good
performance over a wide frequency range, effectively filtering
common mode signals of both low and high frequencies. This makes it
suitable for various types of circuits and application scenarios,
and can meet the noise suppression requirements at different
frequencies.
4. Low DC resistance: It has a low DC resistance, which means that
the power loss generated when current passes through is relatively
small. Helps to improve the overall efficiency of the circuit,
reduce energy waste, and decrease the heat generated by resistors,
which is beneficial for the stable operation and heat dissipation
management of the equipment.
5. High saturation current: able to withstand relatively high
currents without easily saturating. In some circuits that require
high current transmission, such as high-power power supply
circuits, it can meet the requirements of high current operation
while ensuring effective common mode filtering, ensuring the normal
operation of the circuit under high load conditions.
6. Easy to integrate: The standard EE8.3 packaging form makes it
easy to integrate into various circuit designs. For engineers, it
is easy to install circuit boards in suitable positions during
layout and design, simplifying the manufacturing process and
shortening the product development cycle.
7. It has a certain degree of magnetic shielding effect: it can
provide a certain degree of magnetic shielding, reduce the
interference of the magnetic field generated by the inductor itself
on surrounding electronic components, and also resist the influence
of external magnetic fields on the performance of the inductor,
enhancing the electromagnetic compatibility (EMC) of the entire
system, so that the equipment can work stably in complex
electromagnetic environments.
