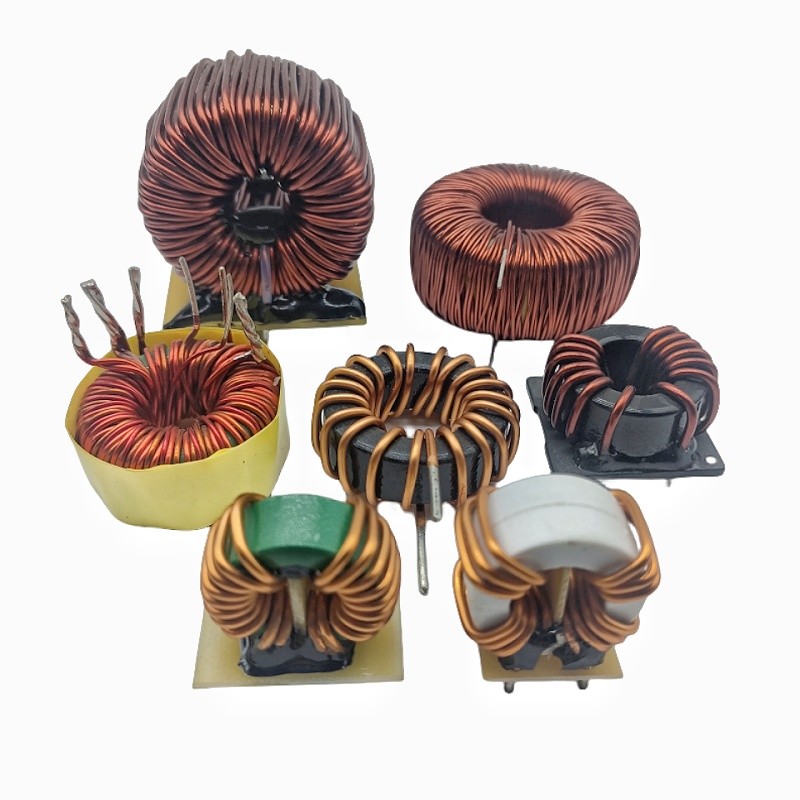

High-Power flat wire common-mode plug-in inductance T1515-20mH Horizontal

The coil part is a flat coil conductive electromagnetic wire, and the connecting feet at both ends bend towards the direction of the external circuit, and there is an insulating coating on the outer surface of the coil part and the joint foot, and only a part of the joint foot is exposed as the joint surface connected with the external circuit, so the joint foot is pre-shaped and put together with the flat coil part in the magnetic guide seat.

Characteristics and application of flat wire inductance

1.Use flat wire.

2. shielded inductance structure.

3.The DC resistance of the same size is the lowest.

4.It can ensure smooth decrease of current-resistant inductance value.

Product Size:

Shenzhen Zhixiangyuan Electronics Co.,Ltd is a high tech enterprise, specializing in customizing various types of audio transformers, high frequency transformers, low frequency transformers，switching power transformers, toroidal inductors, choke coils, SMD power inductors, supper high current inductors and wireless charging coils ,etc for customers.

Founded in 2011,our factory have two production bases in Huizhou city,Guangdong province and Guang’an city,Sichuan province which can produce 120 million inductors and transformers that meet the environmental Protection requirements of ISO every year. Our company equips with fully automatic winding,soldering,assembling,testing machines,also some reliability test equipments.

Our products are certified by UL，FCC，CE，RoHS、Reach and granted with 20 patents.These achievements mainly come from our strong R and D team,providing solutions for temperature decreasing noise cancellation and coupled radiation conductivity.

The products are widely used in high quality audio equipments, audio conference room equipments，communication, medical electronic equipments, automotive electronics, sports and fitness equipments, beauty equipments，LED lighting，and consumer electronics etc.

We are committed to providing high quality coils, inductors, transformers and other products. We can also accept OEM and ODM orders. We sincerely welcome customers at domestic and oversea to visit and cooperate with us with high-quality products, preferential prices and excellent reputation.
