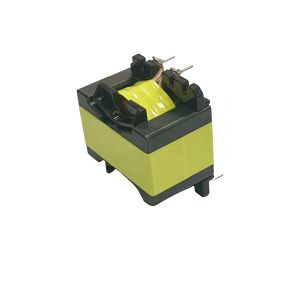

PCB Mounting SMPS Customized Compact PQ3220 High Frequency Transformer

1.Product Description

The PQ3220 High Frequency Transformer is a widely - used and high - performance electronic component. Its core is designed to meet the demands of high - frequency applications, often crafted from materials like high - quality ferrite. This construction enables it to operate efficiently within a frequency range of 20kHz - 500kHz.​
Featuring a compact yet robust structure, the PQ3220 can handle output powers spanning from 10 to 1000 W, making it suitable for a diverse range of applications. It exhibits excellent performance in terms of power conversion efficiency, minimizing energy losses during operation. With a working temperature range from - 40℃ to + 180℃ and storage temperature from - 25℃ to + 85℃, it demonstrates remarkable adaptability to different environmental conditions.​
This transformer has several distinct advantages. It offers low leakage magnetic flux and small losses, which is crucial for maintaining stable power output and reducing unnecessary energy waste. Its good magnetic shielding and strong anti - interference capabilities ensure reliable operation even in complex electromagnetic environments.​
PQ3220 High Frequency Transformers are extensively applied in various fields. They are commonly found in power converters, where they play a key role in stepping up or stepping down voltages. In power adapters, such as those for laptops and mobile devices, they efficiently convert input power to the appropriate output levels. They are also integral to frequency converters, LED drivers, communication equipment, and power tools, contributing to the smooth operation of these high - frequency circuits. Their compact size and high - power - handling capacity make them an ideal choice for applications where space is limited but substantial power is required.
